PRODUCT

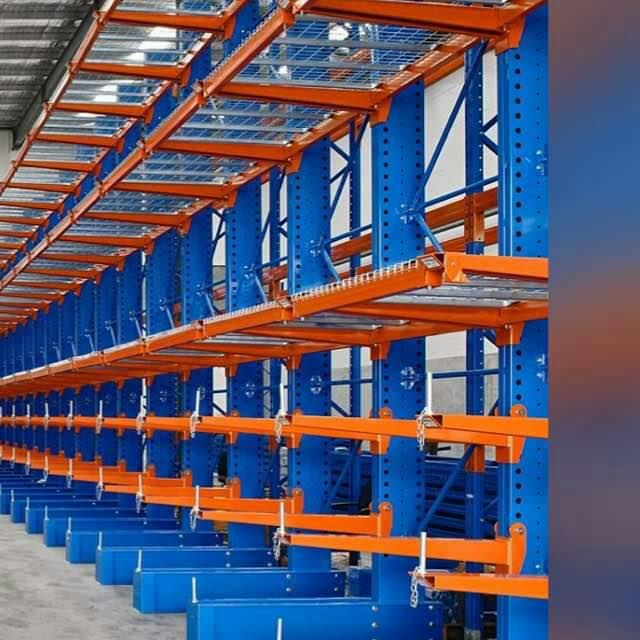

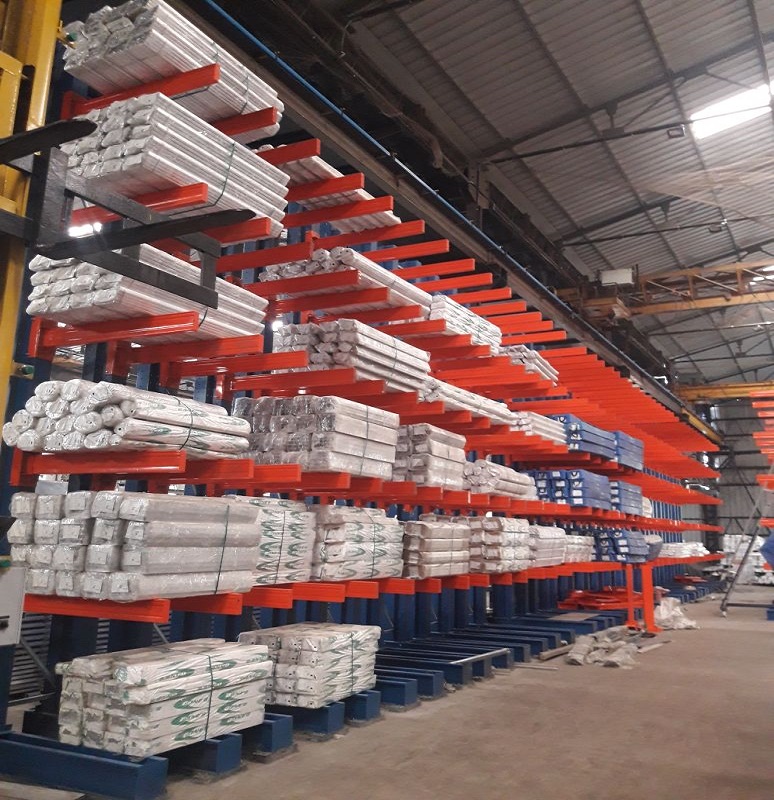

Heavy-Duty Cantilever Rack
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Cantilever Rack. |
| Usage/Application | Storage of long and bulky materials Aluminum profiles storage Pipe and tube storage |
| Material | High-Grade Mild Steel (MS) Structural Steel Sections (ISMB / ISMC / RHS / SHS as per design) Powder-coated finish for corrosion resistance High-strength fasteners & anchor bolts |
| Rack Type | Heavy-Duty Cantilever Racking System |
| No. Of Shelves | 2–3 Load Levels (Depending on arm configuration and height) |
| Color | Blue Upright Columns Orange Cantilever Arms & Base |
| Thickness | Upright Column Thickness: 2.5 mm – 3.0 mm Cantilever Arm Thickness: 3.0 mm – 4.0 mm Base & Bracing Sections: 4.0 mm – 5.0 mm (heavy reinforcement) |

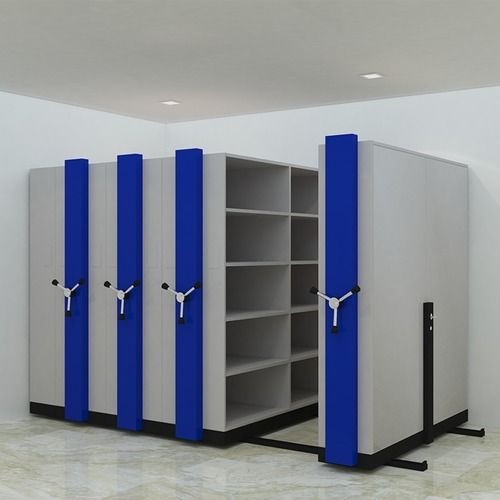

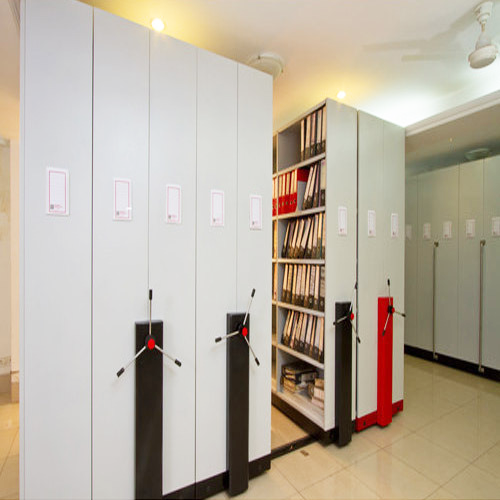

Mobile Compactor Storage System (MCSS Series)
| Model | Mobile Storage Compactor |
| Usage/Application | File storage Office record keeping Document archiving |
| Material | CRCA (Cold Rolled Close Annealed) Mild Steel |
| Rack Type | Mobile Compactor / Mobile Shelving System (with rail-mounted storage units) |
| No. Of Shelves | Typically 5–7 shelves per bay (depending on height requirements) |
| Color | Body: Light Grey Handles & Front Panels: Blue |
| Thickness | Side Panels: 0.8 mm – 1.0 mm Shelves: 0.8 mm – 1.2 mm Base & Rail Sections: 2.0 mm – 3.0 mm (heavy-duty) |

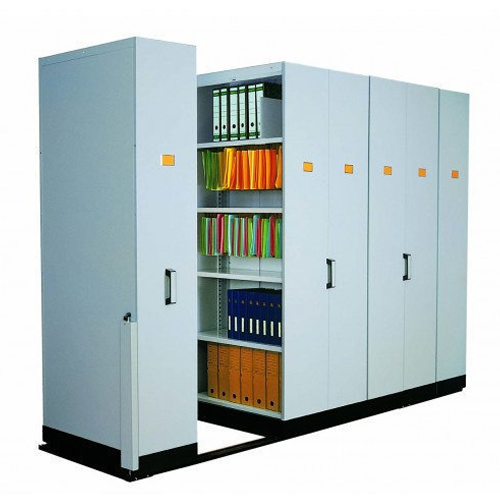

Mobile Compactor Storage System (MCSS Series)
| Model | Mobile Storage Compactor |
| Usage/Application | File storage Office record keeping Document archiving |
| Material | CRCA (Cold Rolled Close Annealed) Mild Steel |
| Rack Type | Mobile Compactor / Mobile Shelving System (with rail-mounted storage units) |
| No. Of Shelves | Typically 5–7 shelves per bay (depending on height requirements) |
| Color | Body: Light Grey Handles & Front Panels: Blue |
| Thickness | Side Panels: 0.8 mm – 1.0 mm Shelves: 0.8 mm – 1.2 mm Base & Rail Sections: 2.0 mm – 3.0 mm (heavy-duty) |
Mobile Compactor Storage System (MCSS Series)
| Model | Mobile Storage Compactor |
| Usage/Application | File storage Office record keeping Document archiving |
| Material | CRCA (Cold Rolled Close Annealed) Mild Steel |
| Rack Type | Mobile Compactor / Mobile Shelving System (with rail-mounted storage units) |
| No. Of Shelves | Typically 5–7 shelves per bay (depending on height requirements) |
| Color | Body: Light Grey Handles & Front Panels: Blue |
| Thickness | Side Panels: 0.8 mm – 1.0 mm Shelves: 0.8 mm – 1.2 mm Base & Rail Sections: 2.0 mm – 3.0 mm (heavy-duty) |
Industrial Heavy-Duty Slotted Angle Rack / Medium-Duty Shelving Rack
| Features Title | Features Value |
|---|---|
| Model | Industrial Heavy-Duty Slotted Angle Rack / Medium-Duty Shelving Rack |
| Usage/Application | Warehouses Industrial storage |
| Material | Mild Steel (MS) structure Powder-coated finish for durability |
| Rack Type | Medium-Duty Storage Rack Multi-Tier Shelving System |
| No. Of Shelves | Appears to have 4–5 shelves per rack (varies based on height) |
| Color | Blue Uprights (Frames) Orange Beams Blue Shelves |
| Thickness | Shelves: 0.8 mm – 1.2 mm Uprights & Beams: 1.6 mm – 2.5 mm (depending on load capacity) |

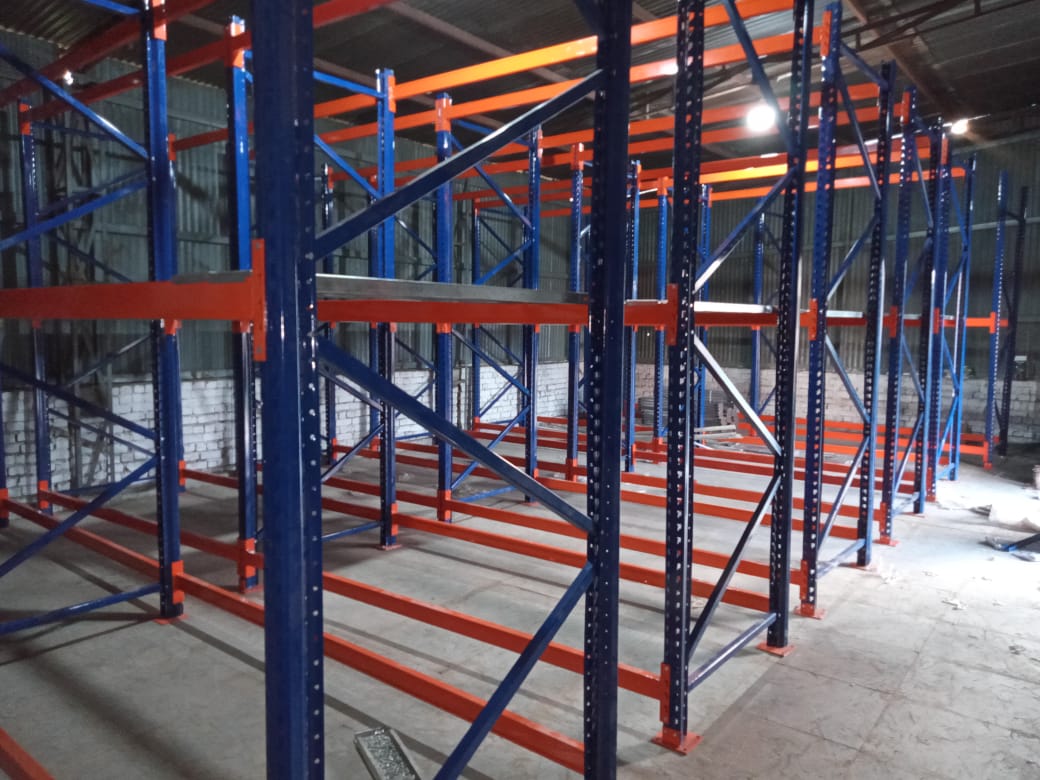

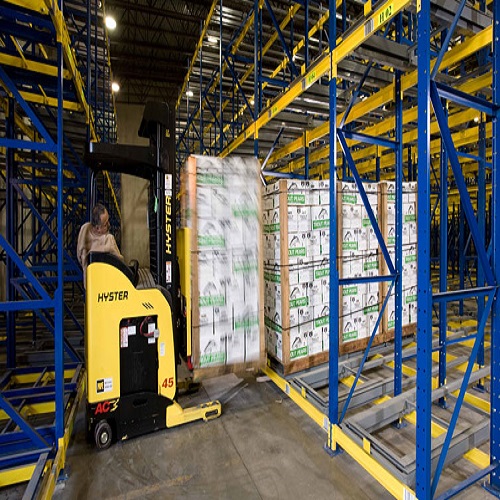

Mezzanine Floor Racking System | Advance Storage Solutions
| Features Title | Features Value |
|---|---|
| Model | Mezzanine Floor Racking System | Advance Storage Solutions |
| Usage/Application | Warehouses with high-density pallet storage Cold storage rooms (Frozen foods, dairy, beverages) |
| Material | Heavy-duty Mild Steel (MS) Powder-coated for rust and corrosion resistance Reinforced beams & upright frames |
| Rack Type | Drive-In Pallet Rack system High-density storage Suitable for forklifts to enter storage lanes |
| No. Of Shelves | 3–5 levels depending on design & height |
| Color | Blue Upright Frames Yellow Beams / Rail Guides Silver/Metal Pallet Rails |
| Thickness | Uprights: 2.0 mm – 3.0 mm Beams: 1.8 mm – 2.5 mm Pallet rails: 2.0 mm – 3.0 mm |

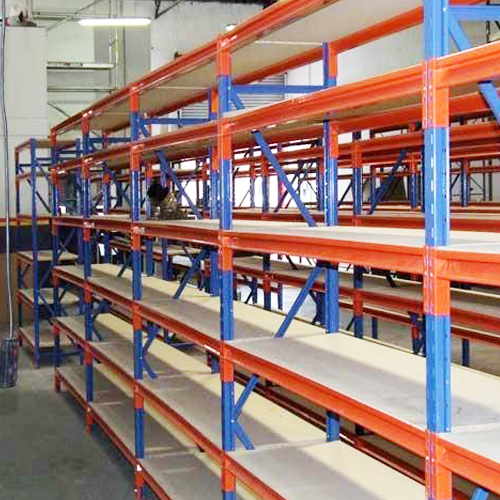

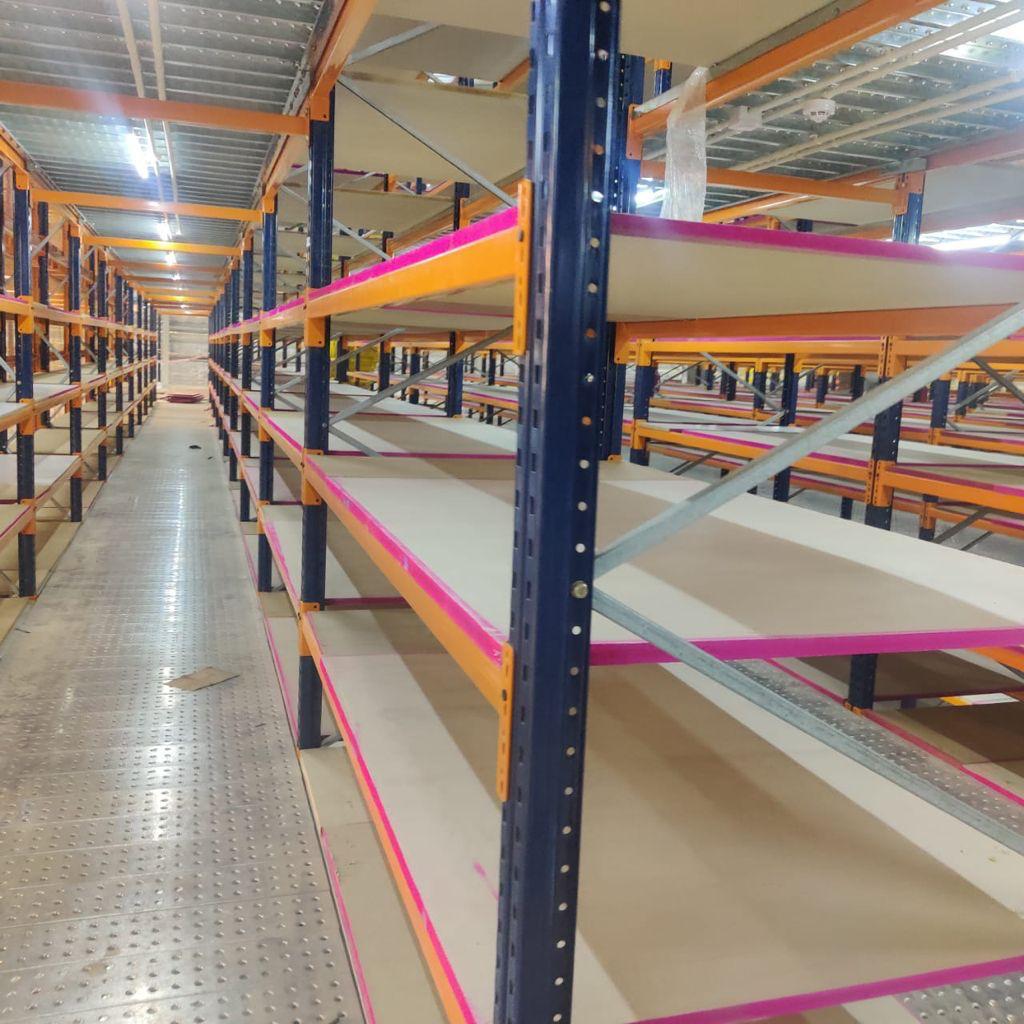

Long-Span Shelving Rack / Medium-Duty Storage Rack
| Features Title | Features Value |
|---|---|
| Model | Long-Span Shelving Rack / Medium-Duty Storage Rack |
| Usage/Application | Warehouses & storage rooms Retail stockrooms Automobile parts storage |
| Material | High-strength Mild Steel (MS) frame Powder-coated finish for durability Shelves appear to be MDF / Wooden Shelves or Particle Board |
| Rack Type | Medium-Duty Long-Span Rack Boltless assembly system Designed for manual loading |
| No. Of Shelves | 4–5 shelves per rack |
| Color | Blue Upright Frames Orange Beams Light-colored MDF/wood shelves |
| Thickness | Uprights: 1.6 mm – 2.0 mm Beams: 1.5 mm – 2.0 mm MDF/Board: 18 mm – 25 mm |
Long-Span Shelving Rack / Medium-Duty Storage Rack
| Features Title | Features Value |
|---|---|
| Model | Long-Span Shelving Rack / Medium-Duty Storage Rack |
| Usage/Application | Warehouses & storage rooms Retail stockrooms Automobile parts storage |
| Material | High-strength Mild Steel (MS) frame Powder-coated finish for durability Shelves appear to be MDF / Wooden Shelves or Particle Board |
| Rack Type | Medium-Duty Long-Span Rack Boltless assembly system Designed for manual loading |
| No. Of Shelves | 4–5 shelves per rack |
| Color | Blue Upright Frames Orange Beams Light-colored MDF/wood shelves |
| Thickness | Uprights: 1.6 mm – 2.0 mm Beams: 1.5 mm – 2.0 mm MDF/Board: 18 mm – 25 mm |
Slotted Angle Rack – Model SAR-01
| Features Title | Features Value |
|---|---|
| Model | Slotted Angle Rack – Model SAR-01 |
| Usage/Application | Office storage Retail stores |
| Material | CRCA Mild Steel (MS) Powder-coated shelves Slotted angle uprights made from MS sheet |
| Rack Type | Slotted Angle Rack |
| No. Of Shelves | Typically 5–7 shelves |
| Color | powder-coated in black or very dark grey. |
| Thickness | Upright Angles: 1.6 mm – 2.0 mm thick steel (for strong load-bearing capacity) Shelves (Panels): 1.0 mm – 1.2 mm steel sheet (powder-coated)1.2 mm – 2 mm (as per requirement) |

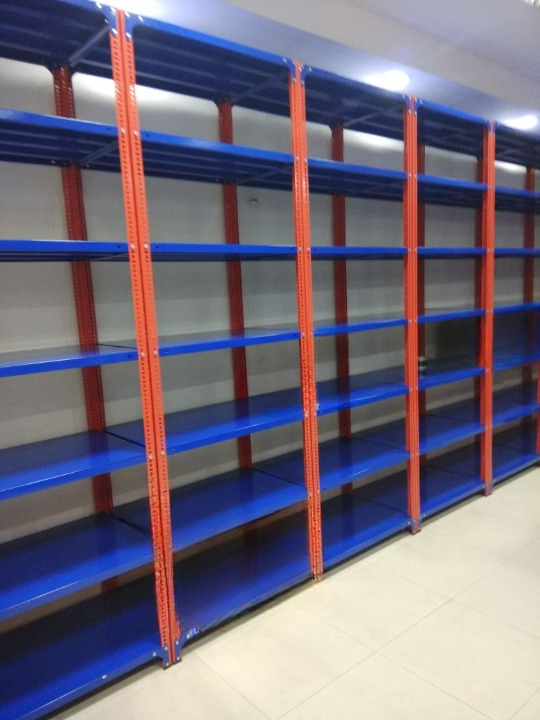

Slotted Angle Rack / Light Duty Storage Rack
| Features Title | Features Value |
|---|---|
| Model | Slotted Angle Rack / Light Duty Storage Rack |
| Usage/Application | Office storage Retail stock rooms Small warehouses |
| Material | Mild Steel (MS) slotted angle frame Mild Steel (MS) shelves with powder coating Fully bolt-type assembly |
| Rack Type | Slotted Angle Shelving System Light to medium-duty loading Manual loading storage system |
| No. Of Shelves | 5–6 shelves per rack |
| Color | Uprights: Orange Shelves: Blue. |
| Thickness | Uprights: 1.6 mm – 2.0 mm Shelves: 0.8 mm – 1.2 mm |

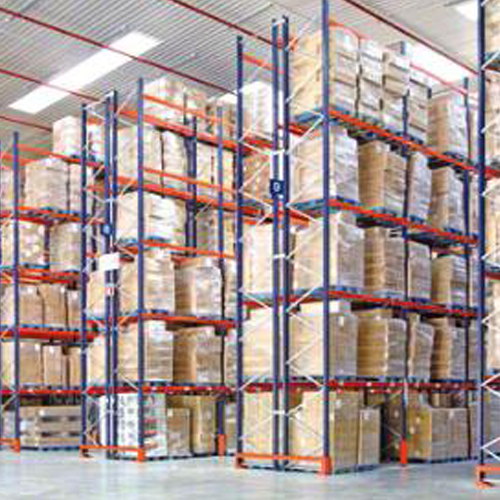

Heavy-Duty Pallet Rack / Selective Pallet Racking System
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Pallet Rack / Selective Pallet Racking System |
| Usage/Application | Large warehouses & distribution centers Industrial palletized storage Logistics & supply chain facilities |
| Material | Heavy-duty Mild Steel (MS) High-strength structural uprights and beams Powder-coated for corrosion resistance |
| Rack Type | Selective Pallet Racking System Forklift-operated storage Adjustable beam levels |
| No. Of Shelves | 3–5 pallet levels depending on height |
| Color | Uprights: Blue Beams: Orange/Red Diagonal bracing: Grey/Silver |
| Thickness | Uprights: 2.0 mm – 3.0 mm Beams: 1.8 mm – 2.5 mm Base plates: 3 mm – 5 mm |

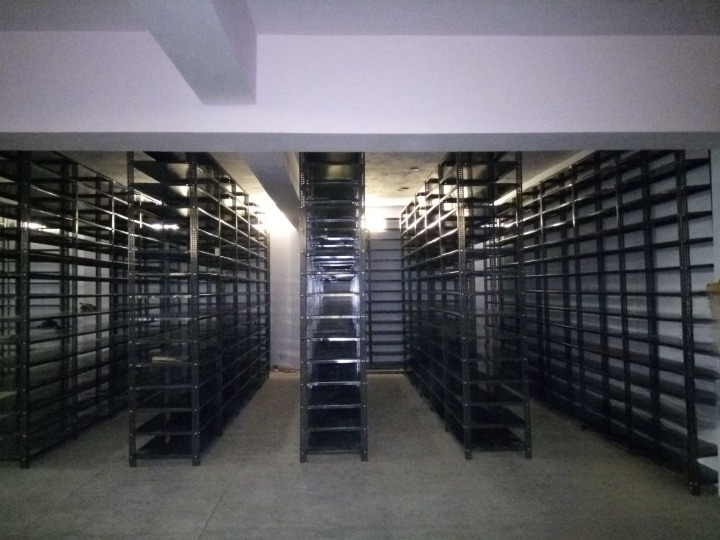

Heavy-Duty Slotted Angle Rack / Library Shelving Rack
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Slotted Angle Rack / Library Shelving Rack |
| Usage/Application | Record rooms & document storage Libraries & archive storage Offices & government departments |
| Material | Mild Steel (MS) slotted angle frame MS Shelves with powder coating Bolt-type assembly system |
| Rack Type | Slotted Angle Shelving System Designed for light to medium loads High-density aisle arrangement |
| No. Of Shelves | 6–7 shelves per rack (as visible) |
| Color | Black / Dark Grey (both uprights & shelves) |
| Thickness | Uprights: 1.6 mm – 2.0 mm Shelves: 0.8 mm – 1.2 mm |
Multi-Tier Mezzanine Rack / Modular Mezzanine Floor System
| Features Title | Features Value |
|---|---|
| Model | Multi-Tier Mezzanine Rack / Modular Mezzanine Floor System |
| Usage/Application | Warehouses with limited floor space E-commerce & online fulfillment centers Spare parts & component storage |
| Material | Heavy-duty Mild Steel (MS) structural framework Robust steel decking panels Powder-coated finish |
| Rack Type | 3-Tier Mezzanine System (Ground + 2 levels) Load-bearing vertical columns Walkways and staircases for easy access High-density vertical storage solution |
| No. Of Shelves | 3 Levels (as shown in the image |
| Color | Uprights: Dark Blue / Black Beams & Frames: Orange / Red Staircase & Handrails: Yellow Decking Panels: Silver/Grey) |
| Thickness | Uprights: 2.0 mm – 3.0 mm Beams: 1.8 mm – 2.5 mm Deck Panels: 1.2 mm – 2.0 mm Handrail & staircase: 2.0 mm – 3.0 mm |
Heavy-Duty Pallet Racking System (Long Span / Selective Pallet Rack)
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Pallet Racking System (Long Span / Selective Pallet Rack) |
| Usage/Application | Warehouse storage Industrial goods storage Palletized & non-palletized material storage |
| Material | High-Grade Mild Steel (MS) Heavy-duty steel uprights, beams, and bracings Powder-coated surface for corrosion resistance |
| Rack Type | 1 Vertical perforated uprights 2 Horizontal load beams 3 Steel deck / pipe decking on each level 4 Open-frame industrial design |
| No. Of Shelves | 3 Storage Levels (excluding floor level) Each level fitted with steel decking / pipe supports |
| Color | Blue Uprights & Frames Orange Load Beams (Standard industrial pallet rack color combination) |
| Thickness | Blue Uprights & Frames Orange Load Beams (Standard industrial pallet rack color combination) |
Medium-Duty Long Span Storage Rack
| Features Title | Features Value |
|---|---|
| Model | Medium-Duty Long Span Storage Rack |
| Usage/Application | Inventory & carton storage Spare parts storage Light industrial storage |
| Material | High-Quality Mild Steel (MS) frame Engineered wood / MDF boards used as shelf panels Powder-coated steel structure |
| Rack Type | Vertical perforated steel uprights Horizontal load beams Flat shelf boards (non-pallet type) Designed for hand-loaded goods |
| No. Of Shelves | 4–5 Shelves per Rack (visible levels) Adjustable shelf heights |
| Color | Blue Uprights Orange Beams Light wood-colored shelf boards Pink edge protection tape visible |
| Thickness | Uprights: 1.6 mm – 2.0 mm Beams: 1.6 mm – 2.0 mm Shelf boards: 12 mm – 18 mm MDF / engineered wood |
Heavy-Duty Pallet Racking System with Wire Mesh Decking
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Pallet Racking System with Wire Mesh Decking |
| Usage/Application | Warehouse pallet storage Logistics & distribution centers Inventory & carton storage Spare parts storage Light industrial storage |
| Material | High-Grade Mild Steel (MS) structure Steel wire mesh decking Powder-coated finish for corrosion resistance |
| Rack Type | Perforated upright frames Heavy horizontal load beams Wire mesh deck panels on each level Forklift-accessible design |
| No. Of Shelves | 3–4 Load Levels (excluding floor level) Each level fitted with wire mesh decking |
| Color | Blue Uprights Orange Beams (Standard industrial pallet racking colors) |
| Thickness | Uprights: 2.0 mm – 2.5 mm Beams: 2.5 mm – 3.0 mm Wire Mesh Deck: 4 mm – 6 mm wire diameter |

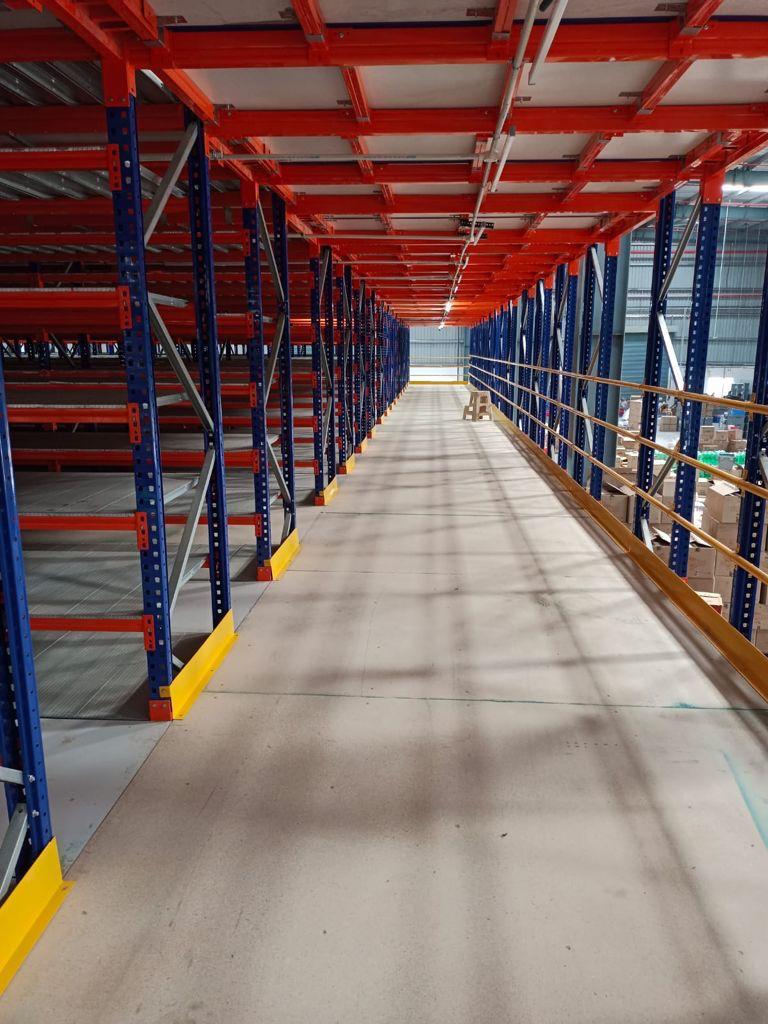

Heavy-Duty Mezzanine Floor Supported Pallet Racking System
| Features Title | Features Value |
|---|---|
| Model | Heavy-Duty Mezzanine Floor Supported Pallet Racking System |
| Usage/Application | High-density warehouse storage Logistics & distribution centers E-commerce fulfillment warehouses Industrial goods & carton storage Space optimization in high-ceiling warehouses |
| Material | High-Strength Mild Steel (MS) structure Heavy-duty steel uprights, beams, and joists Metal deck flooring on mezzanine level Powder-coated finish for durability |
| Rack Type | Tall pallet rack uprights supporting upper floors Integrated walkway / aisle flooring Safety railings on elevated level Designed for forklift + manual picking operations |
| No. Of Shelves | 2–3 Storage Levels + Mezzanine Floor Floor-level pallet storage and elevated working platform |
| Color | Blue Uprights Red / Orange Beams Yellow Floor Guards & Safety Elements |
| Thickness | Uprights: 2.5 mm – 3.0 mm Load Beams: 2.5 mm – 3.5 mm Floor Deck Sheets: 1.6 mm – 2.0 mm Safety Rails: 2.0 mm – 2.5 mm |

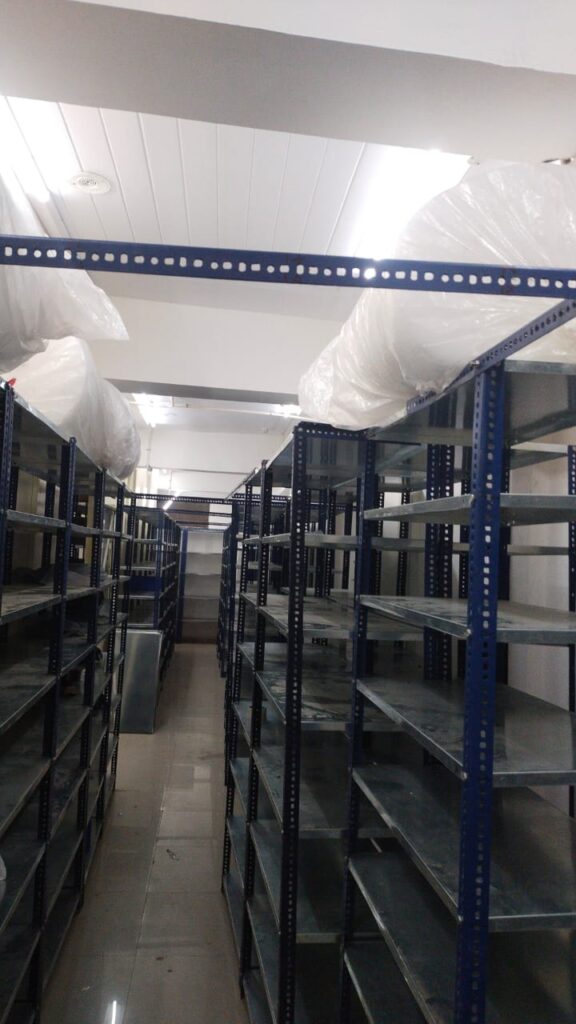

Light- to Medium-Duty Slotted Angle Storage Rack
| Features Title | Features Value |
|---|---|
| Model | Light- to Medium-Duty Slotted Angle Storage Rack |
| Usage/Application | Stockroom storage Retail back-store storage Document & file storage Spare parts storage Light industrial storage Office & utility storage |
| Material | Mild Steel (MS) structure Steel shelf panels Powder-coated / painted finish |
| Rack Type | Perforated angle uprights Adjustable shelf levels Open shelving design Hand-loaded storage system |
| No. Of Shelves | 5–6 Shelves per Rack (visible) Adjustable shelf spacing |
| Color | Blue Uprights Metallic Grey Shelves |
| Thickness | Upright angles: 1.2 mm – 1.6 mm Shelves: 0.8 mm – 1.0 mm |

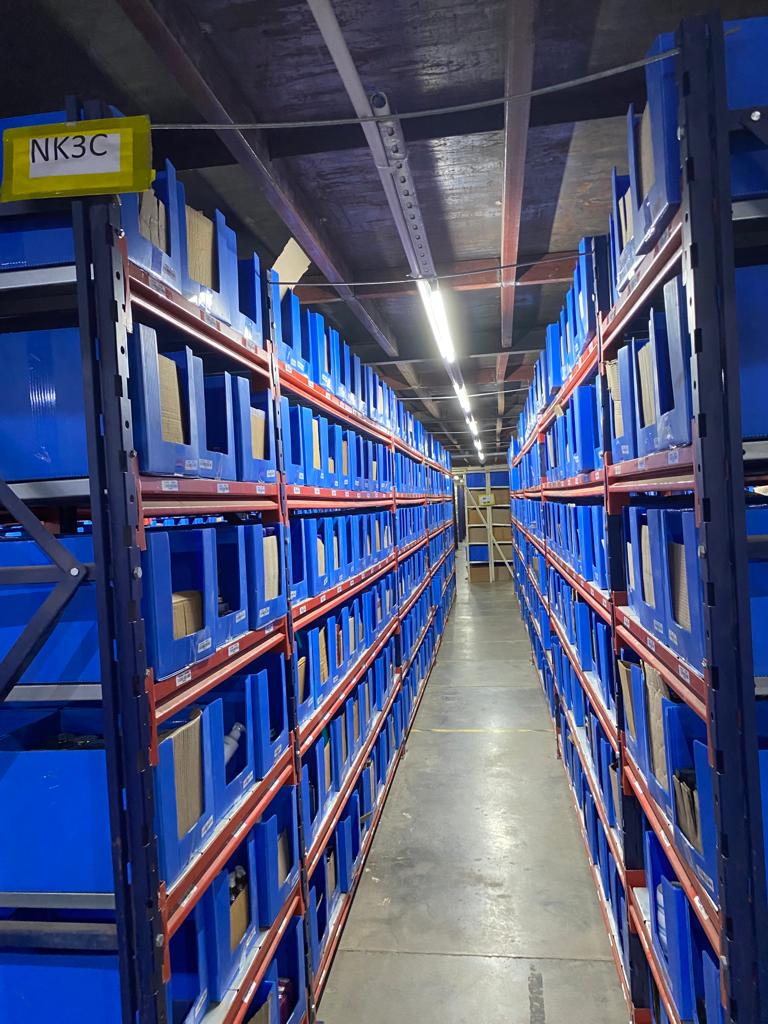

Bin Storage Rack (Manual Picking System)
| Features Title | Features Value |
|---|---|
| Model | Bin Storage Rack (Manual Picking System) |
| Usage/Application | Warehouse picking systems E-commerce fulfillment centers Spare parts & component storage Inventory segregation & SKU storage Manufacturing & assembly lines |
| Material | High-quality Mild Steel (MS) rack structure Plastic storage bins (PP / HDPE) Powder-coated steel framework |
| Rack Type | Multiple horizontal rack levels Individual plastic bins on each level Designed for manual order picking Narrow aisle layout for space optimization |
| No. Of Shelves | 4–5 Storage Levels per rack Each level fitted with multiple plastic bins |
| Color | Blue Plastic Bins Dark Grey / Blue Uprights Red / Orange Beams |
| Thickness | Uprights: 1.6 mm – 2.0 mm Beams: 1.6 mm – 2.0 mm Bin Material: 3 mm – 5 mm plastic wall thickness |

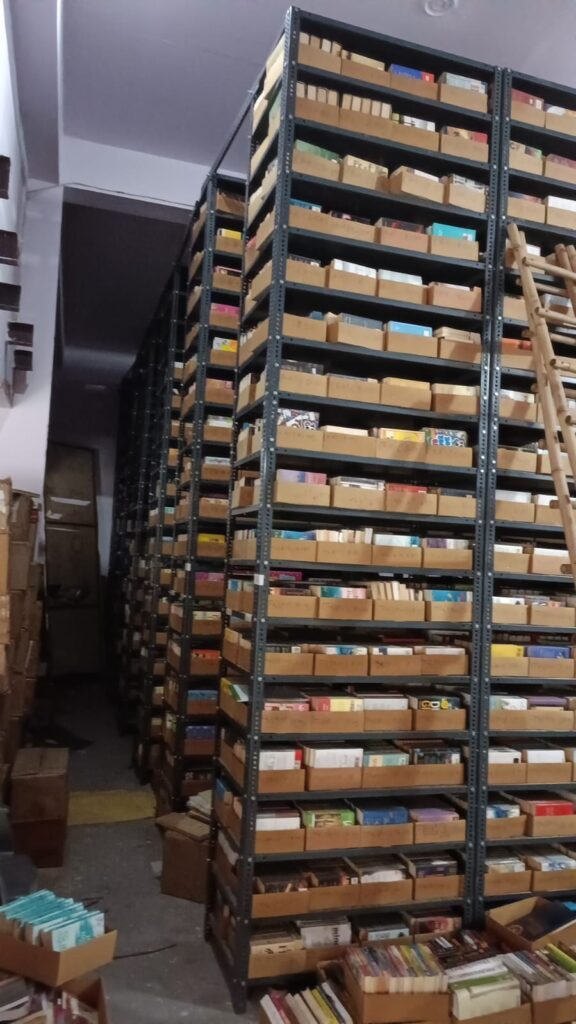

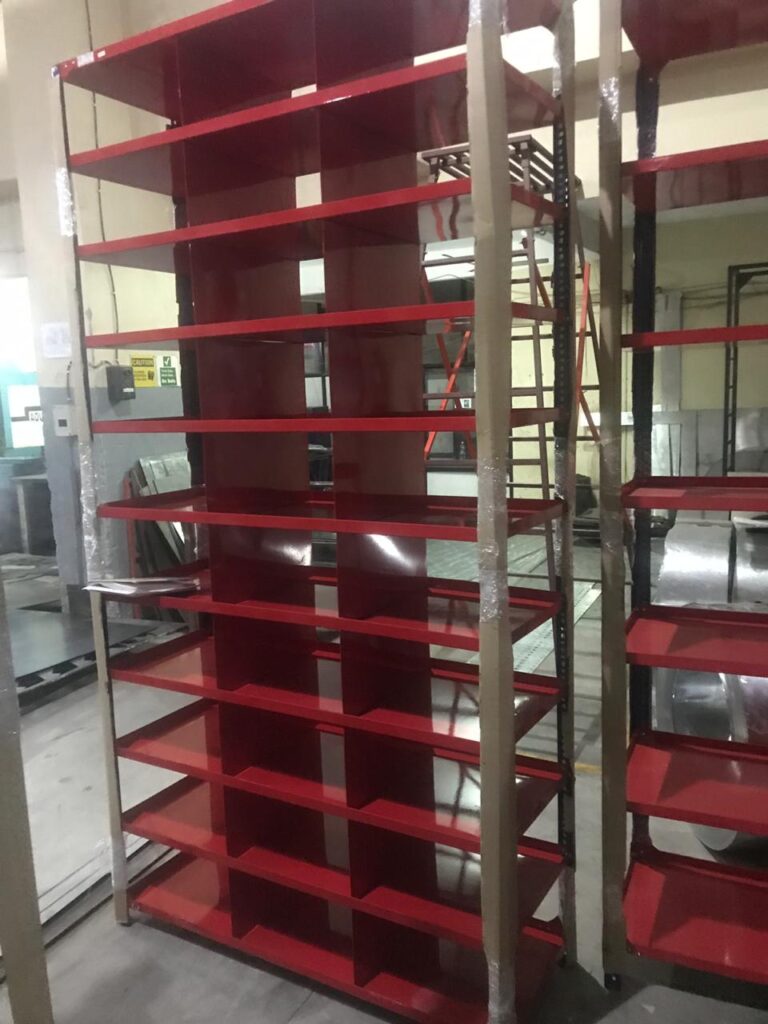

High-Density Slotted Angle Storage Rack / Library & Archive Storage Rack
| Features Title | Features Value |
|---|---|
| Model | High-Density Slotted Angle Storage Rack / Library & Archive Storage Rack |
| Usage/Application | Book & publication storage Library stacks Archive & record rooms Warehouse small-item storage Inventory & SKU management |
| Material | Heavy-Duty Mild Steel (MS) structure Steel shelf panels Powder-coated / painted finish |
| Rack Type | Perforated steel angle uprights Multiple closely spaced shelves Designed for manual loading of books, cartons, or files |
| No. Of Shelves | 12–14 Shelves per Rack (visible) Adjustable shelf spacing |
| Color | Dark Grey / Black Frame Brown cardboard trays / boxes Multi-colored stored items (books) |
| Thickness | Upright angles: 1.6 mm – 2.0 mm Shelf panels: 0.9 mm – 1.2 mm |
